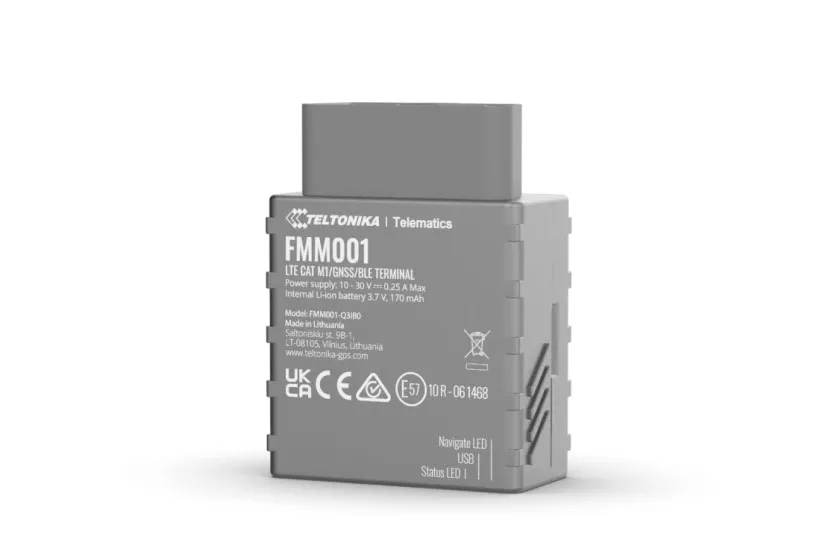

Teltonika FMM001

The Teltonika FMM001 serves as a tracking terminal with GNSS and GSM connectivity, efficiently gathering device coordinates and transmitting them via the GSM network to a server. Tailored for applications requiring precise location data for remote objects, it's crucial to note that the FMM001 features a standard OBD-II interface, enabling the monitoring of fundamental vehicle parameters.

Key Specifications of Teltonika FMM001:

1. Quectel BG96 and TM2500 Quad Band Module:
   • LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28 LTE TDD: B39 (for CAT M1 only), GSM 850 / 900 / 1800 / 1900 MHz.
2. GPRS Multi-Slot Class 12:
   • Up to 240 kbps data transfer for efficient communication.
3. SMS Functionality:
   • Supports text and data messages.
4. Integrated GNSS Receiver:
   • Achieves receiver sensitivity up to -165 dBm.

Noteworthy Hardware Features of Teltonika FMM001:

1. Built-in Sensors:
   • Includes a movement sensor for enhanced tracking.
2. Bluetooth Compatibility:
   • Equipped with Bluetooth 3.0 and Bluetooth 4.0.
3. High-Gain Antennas:
   • Internal GNSS and GSM antennas optimize signal reception.
4. Ample Storage:
   • 128 MB Flash, accommodating 422,400 records.
5. Rechargeable Battery:
   • 170 mAh Li-ion, 3.7 V capacity.

Interface Features of FMM001:

1. Power Supply Range:
   • Operates within +10 to +30 V.
2. Versatile Connectivity:
   • Includes CAN, K-LINE, USB port, OBD II interfaces.
3. LED Status Indicators:
   • Two LEDs providing device status updates.

Special Features of Teltonika FMM001:

1. Swift Position Fix:
   • Ensures a rapid and accurate location fix.
2. High-Quality Tracking:
   • Reliable tracking even in high-density urban canyons.
3. Compact Design:
   • Features a small and practical case.
4. Real-Time Tracking:
   • Provides live tracking updates.
5. Smart Data Acquisition:
   • Based on time, speed, angle, distance, ignition, or other I/O events.
6. Communication Modes:
   • Data transmission via GPRS and SMS I/O events.
7. Security Measures:
   • Includes jamming detection and is configurable via secured SMS commands.
8. Overvoltage Protection:
   • Safeguards against voltage fluctuations.

In conclusion, the FMM001 offers a comprehensive tracking solution with user-friendly features, ensuring easy integration and reliable performance for various applications.
