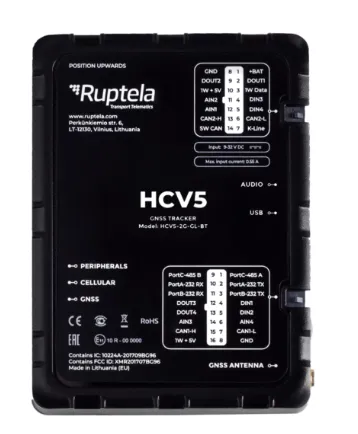

HCV5 is a high level GPS tracker for trucks, transports, farming, and other particular hardware. It is intended for vehicle following and can perform progressed errands – read on-board PC information (CAN), screen driver conduct, remotely download tachograph information, oversee fuel, and so on.
The gadget is accessible in varieties that utilization GSM (2G) and LTE Feline M1 (4G) networks and Bluetooth for different use cases and embellishments.
| Name |
Description |
| Server Port |
22014 |
- 2G, 4G (LTE CAT-M1 and NB-IoT) supported connectivity
- CANbus reading (FMS, J1708, J1939)
- Digital tachograph data reading (.ddd)
- External and Internal antennas
- Built-in battery
- 2x RS232
- 1x RS485
- 4x Digital inputs
- 4x Analog inputs
- 4x Digital outputs
- 3xCAN interfaces (2xCAN and 1xK-Line interfaces for CAN bus reading)
- 1-Wire interface
- Micro USB and 3x indications LEDs
- Sleep and deep sleep modes
- Automatic accelerometer calibration
- Power supply range 9 – 32 V DC
- Commands and configuration via USB, GPRS, SMS
- Over-the-air configuration and firmware upgrades
- Jamming detection
- Size 101 x 74 x 23 mm
