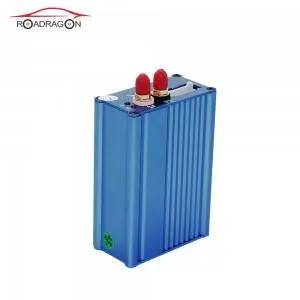

Roadragon G-V288

Home » GPS Tracker » Roadragon G-V288

Manufacturer: Roadragon Bridge Tech Co Ltd

Expand and enrich external interfaces, with mult i-camera image monitoring, TTS voice broadcast, automatic bus stop reporting, driving recorder (b lack box), LED bar screen advertising, electronic seal, temperature detection, fuel consumption det ection, load detection, passenger flow statistics , Operation data upload and other functions.

INFORMATION
FEATURES

Name	Description
Server Port	5451

Hardware features
Hardware architecture	Using dual-core central processing chip
Communication module	GPRS, SMS dual channel module
Reliability design	Power supply 4 levels of protection, 4 levels of watchdog
Circuit board protection	Three-proof paint spray protection
Technical specifications
Operating Voltage	9～33 V/DC
Limit voltage	100V/DC
Battery protection voltage	Low end: 9V (12V battery) or 20V (24V battery) High end: 36V
Anti-reverse voltage of power supply	≥100V
Average working current	70mA DC 12V
Power saving mode	＜20mA DC 12V
spare battery	Work 3 hours
Dimensions	88x 62.5 x 32.5 mm (L x W x H)
Housing material	Aluminum alloy
Host weight	0.26kg
interface
GPS antenna	SMA interface: -26dB cable length 5m
GSM antenna	SMA interface: －3dB cable length 3m
Vehicle detection interface	9 signal inputs
AD detection interface	2 AD signal inputs (enhanced 2, 3, 4 type)
Video interface	Serial camera input, expandable 4 cameras
Voice interface	2 way voice interface
Data interface	2 RS-232 serial ports
Environmental characteristics
Automotive EDM interference immunity	Discharge voltage is 10 kV ～ 20 kV, discharge frequency is 20 times / s ～ 200 times / s
Electrical fast transient burst immunity	4KV, experimental level Ⅳ
ESD immunity	Contact discharge 6KV, air discharge 8KV, experiment level Ⅲ
Conducted disturbance limit	Meets Class B requirements
Radiation disturbance limit	Meets Class B requirements
Temperature characteristics	Working temperature -20 ℃ ～ +60 ℃
humidity	Limit temperature -35 ℃ ～ -20 ℃, + 60 ℃ ～ + 70 ℃
GPS performance
Tracking sensitivity	-159dBm
Positioning time	Cold start is less than 34 seconds; hot start is less than 3.5 seconds; warm start is less than 33 seconds, and recapture time is 1.0 second
positioning accuracy	10 meters 2D RMS
Speed accuracy	0.1 m / s
Base station positioning accuracy	100 metres
GSM / GPRS performance
frequency	EGSM900/GSM1800
Transmit power	EGSM900：CLASS4(2W)，GSM1800：CLASS1(1W)
GPRS	GPRS multi-slot class8GPRS multi-slot class 10 GPRS mobile station classB Downlink speed: up to 85.6KbpsUplink speed: up to 42.8Kbps
data storage
Track record storage	50,000 track record storage
Dead zone make-up cache	Cache 500 (point) positioning information
Road detection storage	8 road data can be set, each road can be composed of 1023 polyline segments and 256 stations
Attribute area storage	Can set 108 rectangular areas (of which 20 polygon areas can be set)
Image storage	More than 200 pictures stored locally
