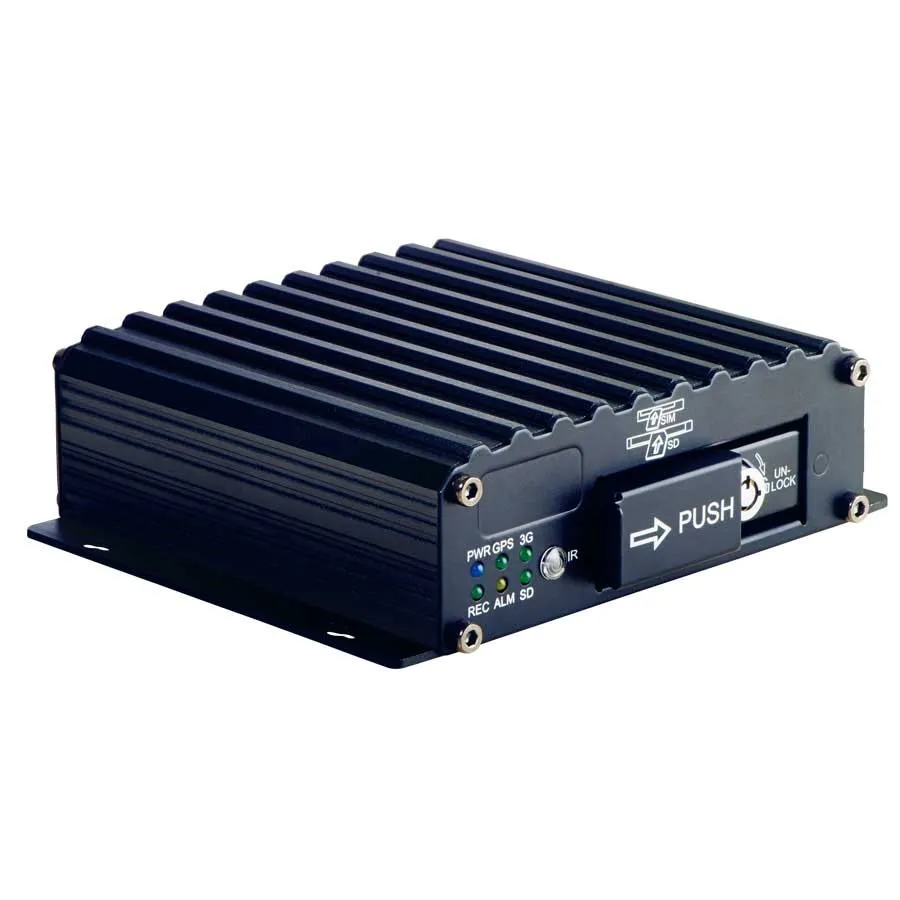

MyRope Innovation M598-4HD
1)Metal Cover;
2)External radio wire;
3)Track by 3G organization;
4)Real time following at spans;
5)Video keep progressively (50MB/h 3G rate utilization), MPEG4/H.264 pressure, Buddy 25fps and NTSC 30fps for each channel;
6)Compitable with 2TB harddisk or SD card (675MB/h every camera, 4 cameras can record for 28 days) ;
7)Remotely Cripple/Empower motor;
8)Low power alert;
9)Over speed alert;
10)Geo-wall alert;
11)Parking alert;
12)Tired driving alert
13)Fuel or temperature observing;
14)History playback;
15)Mileage insights;
16)Reports insights;
17)Boarding records through RFID.
| Name |
Description |
| Server Port |
5534 |
| Items |
Parameters |
| 3G Module |
Huawei MU709S |
| 3G Network Mode |
WCDMA/CDMA |
| LBS Positioning Accuracy |
100-500m |
| 3G Antenna |
External |
| GPS Chipset |
U-blox 7020 |
| GPS Sensitivity |
-163 dBm |
| GPS Positioning Accuracy |
5-25m |
| GPS Antenna |
External |
| Wifi Chipset |
MT 5931 |
| Wifi Positioning Accuracy |
5-25m |
| Wifi Antenna |
Built-in |
| Speed Accuracy |
0.1m/s |
| Time Accuracy |
Synchronize with GPS |
| GPS Data |
WGS-84 |
| Hot Start |
<1s |
| Warm Start |
<38s |
| Max Altitude |
18000m |
| Max Speed |
515m/s |
| Gravity Acceleration |
<4g |
| Video Input |
4/8 channels composite video input |
| Video Output |
Single composite video output |
| Video Standard |
PAL(25fps)/NTSC(30fps) |
| Image Compression |
H.264 Main profile |
| Image Format |
CIF/HD1/D1 optional |
| Video Steaming Standard |
ISO14496-10 |
| Video Bitrate |
CIF: 1536Kbps-128Kbps; HD1: 2084Kbps-380Kbps;
D1: 2048Kbps-400Kbps |
| Audio Input |
4/8 channels audio input |
| Audio Output |
Single audio output |
| Audio Bitrate |
8KB/S |
| Recording Mode |
Synchronize with Video |
| Working Voltage |
8VDC~50VDC |
| Working Current |
50mA~160mA |
| Operating Temperature |
-20℃—65℃ |
| Humidity |
5%—95% |
| Size |
210mm×150mm×60mm |
| Storage |
Compitable with 2TB harddisk or SD card |
| Serial Port |
RS232 1pc; RS485 2pcs |
| Digital Input |
10pcs |
| Digital Output |
2pcs |
| A/D Input |
1pc |
