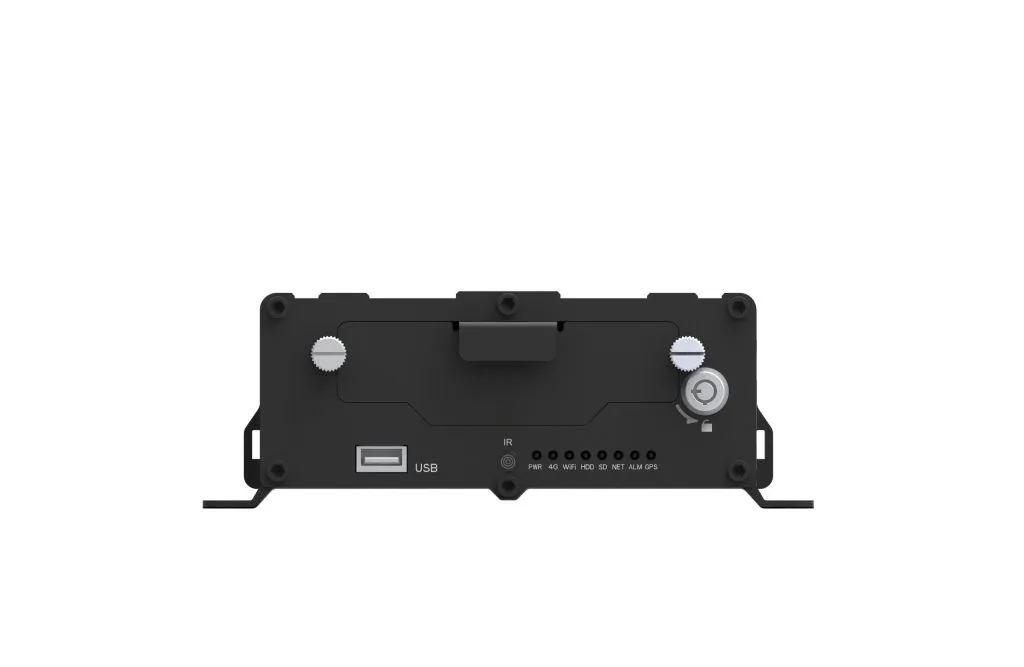

Hero-ME31-08 V5 MDVR
The Hero-ME31-08 V5 is a high-end 12-channel hybrid AI MDVR designed for advanced fleet monitoring, safety analytics, and high-capacity video storage.
Supporting up to 8 AHD + 4 IP cameras, this system offers complete visibility for buses, logistics fleets, and heavy commercial vehicles.
Equipped with AI-powered safety features like DMS, ADAS, BSD, and PCS, it combines cutting-edge driver behavior monitoring with passenger and vehicle analytics.
With built-in 4G, GPS, and dual-band Wi-Fi, plus up to 4TB HDD/SSD storage, the ME31-08 V5 provides unparalleled reliability, connectivity, and intelligence for complex fleet operations.
Applications
-
Public transport and intercity buses
-
Large logistics and distribution fleets
-
School and passenger transport vehicles
-
Construction, mining, and utility fleets
-
Emergency response and surveillance vehicles
Why Choose Hero-ME31-08 V5
The Hero-ME31-08 V5 is built for enterprise-grade fleet intelligence, offering unmatched video capacity, AI-assisted driver safety, and seamless integration with existing fleet systems.
Its hybrid recording architecture, multi-network connectivity, and deep AI analytics make it the ultimate MDVR for large-scale fleet safety and compliance.
- Information
- Features
| Category | Details |
|---|---|
| Model | Hero-ME31-08 V5 |
| Operating System | Linux |
| Video Channels | 8 × AHD + 4 × IP (Total 12 channels) |
| Video Resolution | 1080p / 720p AHD, CVBS |
| Video Frame Rate | 8×1080p@15fps (AHD) + 4×1080p@30fps (IP) |
| Video Compression | H.265 / H.264 |
| Audio Channels | 8 + 4 inputs, 2 outputs |
| Audio Formats | G.711A / G.711U / G.726 |
| Video Output | 1 × CVBS, 1 × VGA (optional) |
| Storage | 1 × HDD/SSD (max 4TB), 1 × SD card (max 512GB) |
| Network | 4G LTE, GPS/Beidou/GLONASS, Wi-Fi 2.4GHz/5.8GHz |
| Sensors | Built-in 6-axis G-sensor |
| AI Functions | DMS, ADAS, BSD, PCS, Face Recognition |
| Connectivity | RS232 (3 + 1 debug), RS485, CAN (optional), 1-Wire (×2), Analog In (×1), Digital In (×8), Digital Out (×2) |
| Power Supply | 8–36V DC |
| Power Output | 1 × 12V@0.5A, 1 × 5V@0.5A |
| UPS Support | External UPS supported |
| Operating Temp. | –20 °C to 70 °C (–40 °C with HDD heater) |
| Storage Temp. | –20 °C to 80 °C |
| Dimensions | 190.4 × 187 × 65.5 mm |
| Encryption | AES256 |
| Certifications | CE, FCC, Emark, UKCA |
