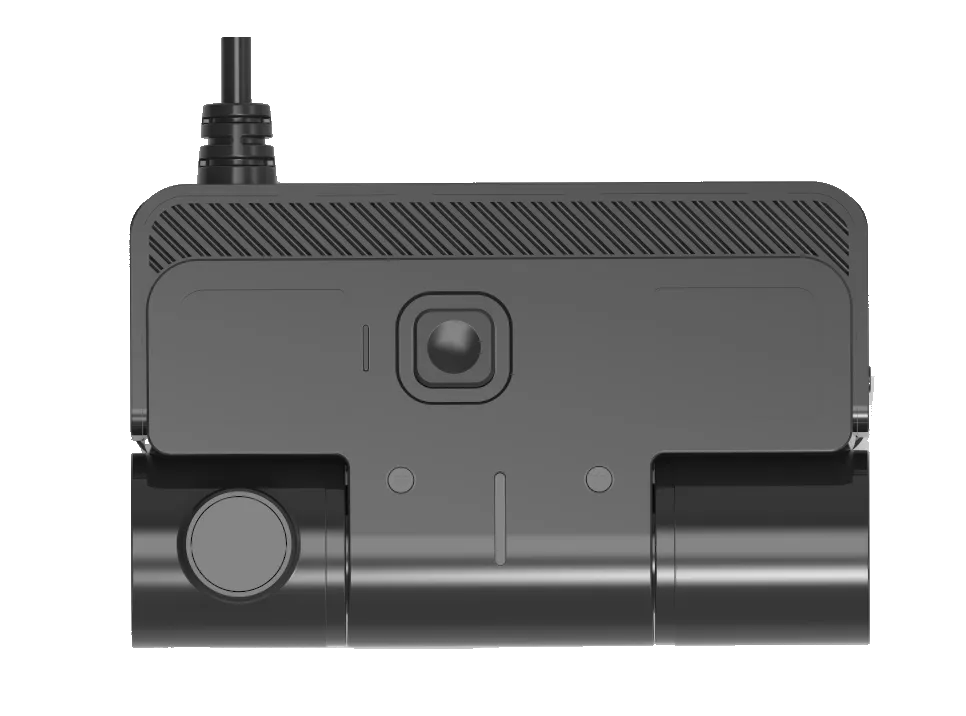

The Hero-MC30-02H is a multi-channel AI dashcam that delivers complete visual intelligence for commercial fleets. Designed for scalability, it supports up to 5 camera channels (2 AHD + 3 IP) — offering full vehicle visibility from front, in-cabin, rear, and blind-spot angles.
With integrated DMS and ADAS functionalities, this compact and cost-effective solution empowers fleet operators to monitor driver behavior, detect risks in real time, and enhance road safety. Its modular design, 4G and Wi-Fi connectivity, and large 1TB storage make it ideal for professional fleet safety applications.
| Operating System |
Embedded Linux |
| Video Channels |
2 AHD + up to 3 IP (max 5 channels) |
| Video Compression |
H.265 / H.264 |
| Recording Capability |
1080p @ 30fps (each channel) |
| Field of View |
Front: 116°, In-cab: 128° |
| Audio |
Built-in microphone and 1.5W speaker |
| Audio Formats |
G.711A / G.711U / PCM / G.726 |
| Storage |
1 × TF card, max 1 TB (hot-swappable) |
| Connectivity |
Built-in 4G module, 1 × nano SIM slot |
| Wi-Fi |
2.4GHz 802.11 b/g/n (AP / CPE mode) |
| GNSS |
GPS / Beidou multi-mode |
| Sensors |
Built-in 6-axis G-sensor |
| AI Capabilities |
DMS, ADAS, Face Recognition |
| Interfaces |
2 × Digital Input, 1 × Digital Output (12V 0.2A), 1 × RS232, 1 × 12V Output |
| Power Supply |
9–36V DC, OBD supported |
| Sleep Mode |
GPS reporting supported |
| Operating Temp. |
–20 °C to 70 °C |
| Storage Temp. |
–40 °C to 85 °C |
| Dimensions |
113 × 68.8 × 45.9 mm |
-
Comprehensive Multi-Camera Setup: Supports 2 AHD cameras and up to 3 external IP cameras for full 360° fleet visibility.
-
Dual 1080p Primary Channels: Records front road view and in-cabin footage at 1080p @ 30fps each.
-
Detachable & Expandable Design: Allows flexible extension with in-cab, rear-view, or side-view cameras.
-
AI-Driven Monitoring: Built-in DMS detects fatigue, distraction, smoking, and phone use, while ADAS delivers real-time alerts for collision and lane departure risks.
-
Face Recognition System: Identifies drivers, logs changes, and detects abnormal driver behavior.
-
Wide-Angle Lenses: 116° front and 128° in-cabin HFOV for broader video coverage.
-
Strong Connectivity: 4G module with regional band options and built-in 2.4GHz Wi-Fi for seamless configuration via the Howen iTool App.
-
Advanced Sensing: 6-axis G-sensor records harsh events like impact, braking, or rollover.
-
Smart Power Management: Operates on 9–36V DC with sleep-mode GPS tracking and OBD support.
-
Ample Storage Capacity: Supports up to 1TB hot-swappable TF card for extended video retention.
-
Compact Build: Minimizes obstruction for the driver and simplifies installation in tight spaces.
