Technoton DUT-E S7

Home » GPS Tracker » Technoton DUT-E S7

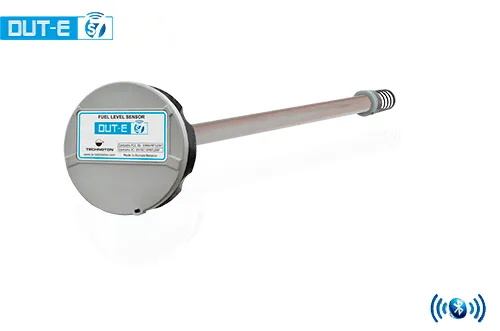

DUT-E S7 wireless sensor allows to measure current fuel volume and its changes in a fuel tank. DUT-E S7 is used as a part of vehicle telematics system (GPS vehicle tracking system) and provides reliable information on remaining fuel volume, fuel tank fill-up and draining volumes and helps fleets to set up clear fuel accounting and prevent fuel theft from vehicle’s tank. DUT-E S7 wireless fuel level sensor is also used for fuel level monitoring in stationary tanks.

Wireless data transfer is carried out using S7 Technology via BLE channel. BLE signal from DUT-E S7 can be received by compatible vehicle tracking unit (telematics unit) and/or any Android or iOS device.

DUT-E S7 can also be used as a “night watchman” to alert driver on fuel theft from vehicle’s tank, for example, when resting at night parking.

INFORMATION
FEATURES

Name	Description
Server Port

Specification

Estimated lifetime of the sensor (battery life), years	5…10*
Fuel level sensor operating principle	Capacitive
Wireless data transfer interface	Bluetooth 4.X
Tx Power, dBm	+4
Rx sensitivity, dBm	-88
Maximum distance between sensor and receiver, m	10…20 (when mounted on a vehicle or inside a building) not less 50 (when mounted within line-of-sight)
Standard probe length, mm	700, 1000 (can be manufactured up to 3000 mm on request)
Data transfer interval, s	5
Number of simultaneous BLE-signal receivers	Any number in DUT-E S7 operation range
Temperature range, °C	-30…+80
